Irrometer Watermark Series: Irrigation Triggers

Filed Under:
Publication Number: P3541
View as PDF: P3541.pdf

This publication series provides information and recommendations pertaining to the Irrometer Watermark 200SS, a granular matrix sensor commonly used in Mississippi for scheduling irrigation. Future publications will discuss other types of soil moisture sensors. Users should choose tools that best fit their needs.

Introduction

An irrigation trigger is the point at which an irrigation cycle starts. Starting too wet wastes water and energy, while starting too dry reduces yield. In this publication, we give guidance on how to select an appropriate trigger for each irrigation system and how to schedule irrigation using Watermark data.

Interpreting Watermark Data

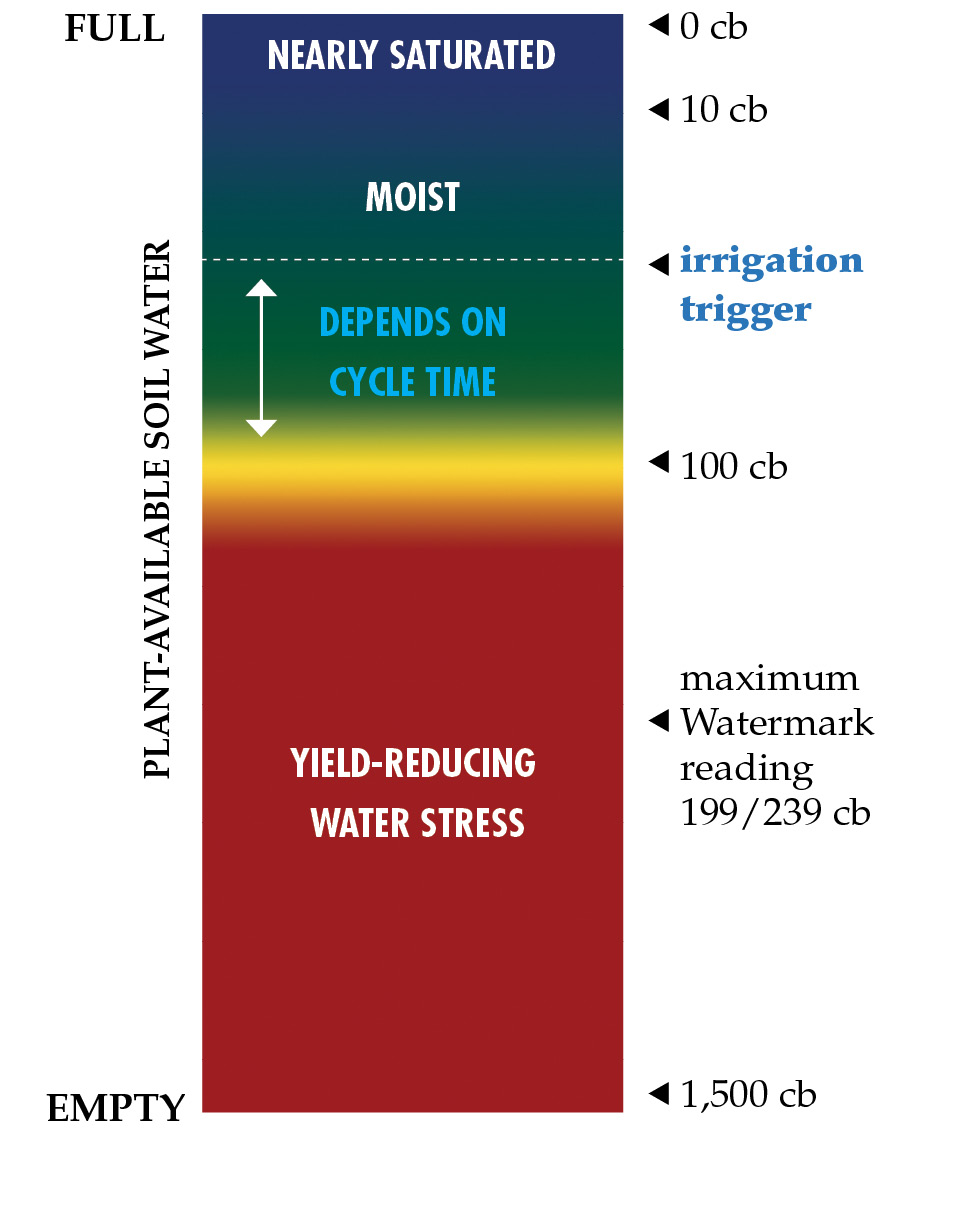

Watermark data can serve as a gauge for the soil water “fuel tank” of the crop. Figure 1 illustrates how to interpret the weighted average centibars (cb) within the active root zone. Centibars are low when wet and high when dry.

Figure 1.
FIGURE 1. The irrigation trigger for a soil water “fuel tank.”

Calculating the Weighted Average

The number of Watermark sensors within the active root zone can depend on crop growth and soil properties. To obtain the weighted average:

  1. Find the column in Table 1 that corresponds to the number of sensors currently included within the active root zone. Once the centibars from a particular sensor have been increasing progressively for some time, this sensor is included for the rest of the season.
  2. Perform the multiplication in each cell of that column.
  3. Add up the result from each cell of that column.

TABLE 1. Template for weighted average calculations.

Sensor depth Two sensors Three sensors Four sensors
6" 0.5 x ___ cb 0.25 x ___ cb 0.17 x ___ cb
12" 0.5 x ___ cb 0.25 x ___ cb 0.17 x ___ cb
24"   0.50 x ___ cb 0.33 x ___ cb
36"     0.33 x ___ cb

These calculations may be automated by the Watermark average calculator or other web tools/services.

Choosing an Irrigation Trigger

Previous research indicates that yield-reducing water stress tends to occur when the weighted average exceeds 100 centibars. The longer the cycle time for an irrigation system, the farther below 100 centibars the weighted average should be when triggering the start of a new irrigation cycle. Table 2 suggests general triggers for irrigation cycles of various durations.

TABLE 2. Irrigation triggers for different irrigation cycle times.

Irrigation cycle (days)

Trigger (cb)

1 100
2 92
3 84
4 76
5 68
6 60
7 52
8 44

Example

Take as an example an irrigation system with one well supplying water to four fields that are irrigated one after another. The time it takes to irrigate each field is 28, 25, 21, and 19 hours, respectively. Thus, the cycle time is 93 hours or nearly 4 days. According to Table 2, a trigger of 76 centibars may be appropriate.

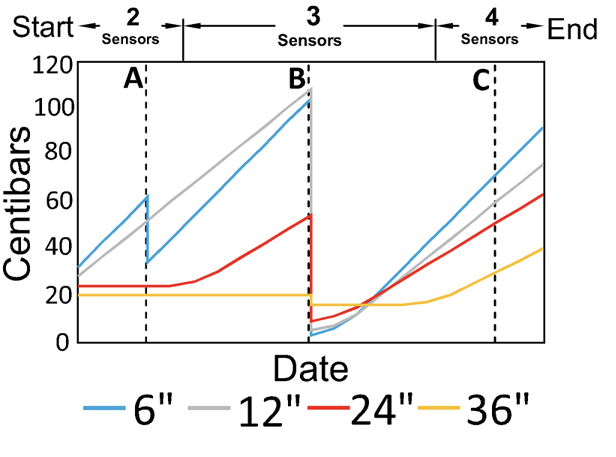

Figure 2 is an example of Watermark data early in the irrigation season. Notice that more sensors are included in the weighted average as the centibars in the deeper sensors begin to increase.

Figure 2.
FIGURE 2. Number of Watermark sensors included in weighted average.

During the first quarter of the graph, only the 6-inch and 12-inch centibars are increasing, so only two sensors are included in the weighted average for example date A. During the middle half, the 24-inch centibars are increasing, so three sensors are included for example date B. During the final quarter of the graph, the 36-inch centibars are increasing, so all four sensors are included for example date C.

Table 3 shows the weighted average calculations on the three example dates. Based on the chosen trigger of 76 centibars, irrigation would be suggested for example date B but not for example dates A and C.

TABLE 3. Weighted average calculations for three example dates.

Sensor depth Date A (two sensors) Date B (three sensors) Date C (four sensors)
6"

0.5 x 62 cb = 31 cb

0.25 x 104 cb = 26 cb

0.17 x 72 cb = 12 cb

12"

0.5 x 52 cb = 26 cb

0.25 x 108 cb = 27 cb

0.17 x 60 cb = 10 cb

24"

0.50 x 54 cb = 27 cb

0.33 x 51 cb = 17 cb

36"

0.33 x 30 cb = 10 cb

Weighted average

31 cb + 26 cb
57 cb

26 cb + 27 cb +
27 cb = 80 cb

12 cb + 10 cb +
17 cb + 10 cb =
49 cb
